Lavadora desinfectadora (lavadora automática de cristalería de laboratorio) BKX-CQS-120
Marca BIOBASE
Origen del producto PORCELANA
El tiempo de entrega En un plazo de 7 días
Capacidad de suministro Suministro directo de fábrica
Modelo BKX-CQS-120 BKX-CQZ-120 BKX-CQS-220 BKX-CQS-320
Introducción:
La lavadora automática de cristalería de laboratorio proporciona limpieza y desinfección estándar y automática para la mayoría de los equipos médicos, a fin de eliminar la posibilidad de infección durante la limpieza y desinfección.
descargar
Features:
1. Adopt PLC microcomputer control technology. Standard printer and 7-inch color LCD touch screen.
2. Complete protection functions: The door cannot be opened during operation to ensure safe use; dual temperature protection of water temperature and air temperature; power failure protection function; water seal design of drainage pipeline to prevent reverse flow of sewage; installed with leak-proof detection, if liquid leakage is detected, The program is cancelled, the inlet valve is closed, and the drain pump is started.
3. Efficient drying: The in-situ drying system uses compressed hot air to enter the cleaning chamber and the interior of the utensils, which can thoroughly dry the utensils and the pipeline of the washing machine. Built-in HEPA high-efficiency filter to ensure the cleanliness of dry air. Synchronize the drying water circulation pipeline to avoid the wet pipeline contaminating the cleaning system.
4. Provides 12 standard programs and 4 custom programs.
Cleaning Procedure:
1. Standard procedure: Meet the general contaminant blood cleaning.
2. Quick cleaning program: Meet the cleaning of lightly polluted utensils.
3. Customized cleaning program: According to different cleaning needs, users can customize the combined cleaning program.
4. Drying program: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments.
5. Manual test procedure: Self-check the operation status of each component of the equipment.

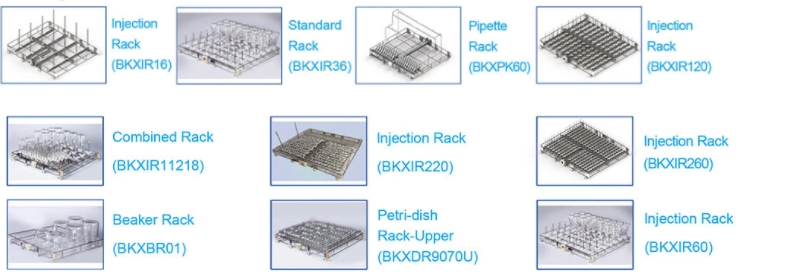

Cleaning Racks:
Technical Parameters:
Model | BKX-CQS-120 | BKX-CQZ-120 | BKX-CQS-220 | BKX-CQS-320 | |
Cleaning | Capacity(L) | 120 | 120 | 220 | 320 |
Washer Load Level | 1 | 1 | 2 | 3 | |
Water Wash Power(KW) | 5 | 5 | 7 | 7 | |
Water Heater Power(KW) | 3 | 3 | 4 | 4 | |
MAX. Power(KW) | 6 | 6 | 9 | 9 | |
Water Consumption/Cycle(L) | 15 | 15 | 20 | 20 | |
Tank Internal Temperature(℃) | 0~95 | ||||
Water Supply Pressure(Mpa) | Tap water: 0.3~0.8 | ||||
Peristaltic Pump for Cleaning Agent | 2 | ||||
Cleaning Agent Level Sensor | YES | ||||
Washing Pump | Sweden 430L/min | Sweden 430L/min | Sweden 1000L/min | Sweden 1000L/min | |
Standard Cleaning Racks | BKXIR36,1pc | ||||
Drying | Drying Function | YES | |||
Steam Condenser | YES | ||||
Dry Power(KW) | 3 | 3 | 4 | 4 | |
Control System and Traceability | Control System | 7dddhhh color LCD touch screen display, microprocessor | |||
Cleaning Program | 12 pre-set programs+4 PLC free programming | ||||
Password Protection | YES | ||||
Safety Emergency Button | YES | ||||
USB Port | YES | ||||
Integrated Printer | YES | ||||
Online Monitor Performance of Washing | YES | ||||
Dimensions& Weight | Chamber Dimension(W*D*H, mm) | 600*630*460 | 600*630*460 | 600*610*750 | 600*610*920 |
Exterior Dimension(W*D*H, mm) | 980*740*870 | 890*800*1630 | 700*800*1850 | 700*800*2000 | |
Package Dimension(W*D*H, mm) | 1150*940*1060 | 1100*970*1900 | 850*950*2250 | 850*950*2250 | |
Net Weight(Host only, kg) | 190 | 260 | 290 | 310 | |
Gross Weight(Host with rack, kg) | 220 | 290 | 330 | 350 | |
Others | Door | Double-layered glass door, 304 stainless steel | |||
Safety Door Lock | YES | ||||
Built-in RO Water Pump | YES | ||||
Noise(dB) | <50 | ||||
Voltage(V/Hz) | Standard: AC220V, 50Hz | ||||
